RC Car Pushrod Suspension

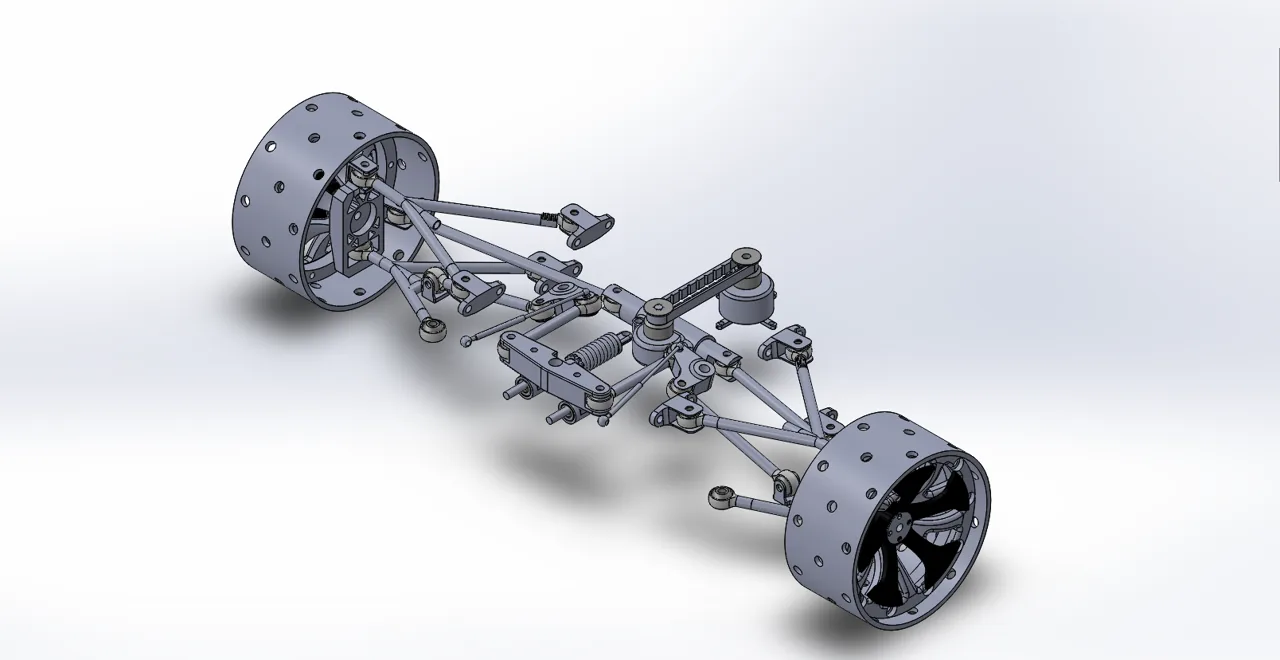

A compact pushrod suspension assembly modeled to study linkage layout, motion, packaging, and component interfaces.
01Defined challenge
02Visible approach
03Controlled next step
The challenge
Make the engineering problem visible
Pushrod suspensions compress several moving links, pivots, springs, dampers, steering clearance, and wheel interfaces into a limited envelope. Small layout changes can affect motion ratios and interference.
Approach
Structure the work around decisions
- Establish wheel, chassis, and suspension reference geometry.
- Develop the linkage and bell-crank relationships as an assembly.
- Check representative motion and packaging through the expected travel.
- Organize parts for iteration, exploded review, and prototype planning.
The assembly model creates a clear environment for geometry changes and exposes the physical questions that should be verified in prototype testing.
Portfolio note
The spotlight communicates mechanism-design scope; detailed dynamic performance depends on inputs and testing not shown in the supplied portfolio.
Related capability: 3D Engineering Design.
