Geared Motor Drive

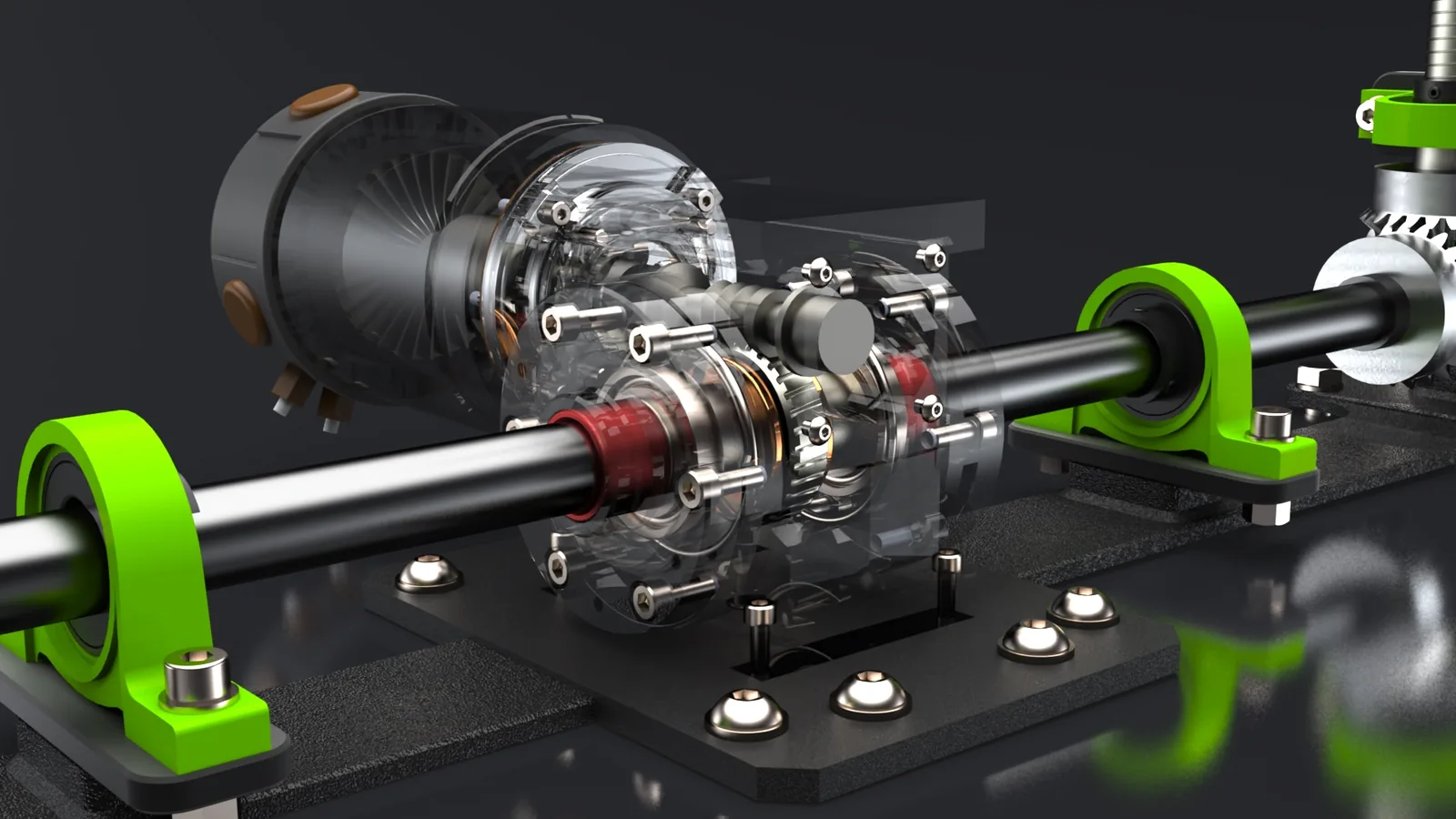

A transparent geared-drive visualization created to communicate shafts, bearings, gears, supports, and internal power transmission.
01Defined challenge
02Visible approach
03Controlled next step
The challenge
Make the engineering problem visible
Internal mechanical systems are difficult to explain when the enclosure hides the relationships that matter. Stakeholders may need to understand assembly, support, motion, and component arrangement without opening a physical prototype.
Approach
Structure the work around decisions
- Organize the drive components into a coherent mechanical assembly.
- Refine materials and transparency to reveal internal relationships.
- Select a camera and lighting setup that emphasizes the power path.
- Produce a high-resolution visual suitable for review and technical presentation.
The result turns a complex internal assembly into an understandable visual story while keeping the presentation grounded in actual component geometry.
Portfolio note
The image is presented as a design and visualization example; performance ratings and production status are outside the supplied material.
